Male Adapter

TKL NO.
TKL18175SA, TKL18176SA, TKL18177SA, TKL18178SA, TKL18179LSA, TKL18179SA, TKL18180LSA, TKL18180SA, TKL18181SA, TKL18182SA, TKL18183SA, TKL18184LSA, TKL18184SA, TKL18185SA, TKL18186SA, TKL18187LSA, TKL18187SA, TKL18188LSA, TKL18188SA, TKL18189LSA, TKL18189SA, TKL18190LSA, TKL18190SA, TKL18191SA, TKL18192SA, TKL18204SA, TKL18193LSA, TKL18193SA, TKL18194LSA, TKL18194SA, TKL18195LSA, TKL18195SA, TKL18196SA, TKL18216SA, TKL18197SA, TKL18198SA, TKL18199SA, TKL18200SA, TKL18201SA, TKL18202SA, TKL18203SA, TKL18205SA, TKL18206SA, TKL18207SA
OE NO.

18175, 18176, 18177, 18178, 18179L, 18179, 18180L, 18180, 18181, 18182, 18183, 18184L, 18184, 18185, 18186, 18187L, 18187, 18188L, 18188, 18189L, 18189, 18190L, 18190, 18191, 18192, 18204, 18193L, 18193, 18194L, 18194, 18195L, 18195, 18196, 18216, 18197, 18198, 18199, 18200, 18201, 18202, 18203, 18205, 18206, 18207

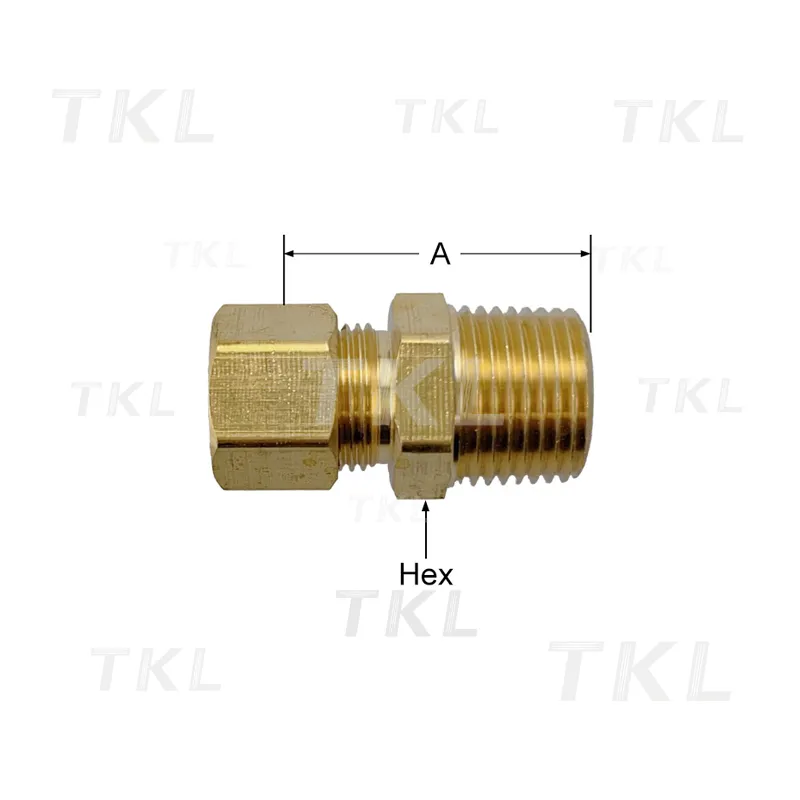

Specification of TKL18175SA Male Adapter

TKL NO.	OE NO.						DESCRIPTION
TKL NO.	PARKER	EATON	ALKON	MAF	GATES	DIXOH	Comp * male NPTF	A	B
TKL18175SA	1115-2B	68x2x1		18175	G55100-0201		1/8*1/16	0.78	0.37
TKL18176SA	68C-2-2	68x2		18176	G55100-0202	68C-0202	1/8*1/8	0.85	0.43
TKL18177SA	68C-3-2	68x3		18177	G55100-0302	68C-0302	3/16*1/8	0.91	0.43
TKL18178SA	68C-3-4			18178	G55100-0304	68C-0304	3/16*1/4	0.89	0.56
TKL18179LSA				18179L	G55100-0402		1/4*1/8	0.88	0.56
TKL18179SA	68C-4-2	68x4		18179		68C-0402	1/4*1/8	0.86	0.43
TKL18180LSA				18180L	G55100-0404		1/4*1/4	0.94	0.56
TKL18180SA	68C-4-4	68x4x4		18180		68C-0404	1/4*1/4	1.06	0.56
TKL18181SA	68C-4-6			18181		68C-0406	1/4*3/8	1.03	0.68
TKL18182SA	68C-4-8			18182		68C-0408	1/4*1/2	1.06	0.87
TKL18183SA	68C-5-2	268x5		18183	G55100-0502	68C-0502	5/16*1/8	0.94	0.50
TKL18184LSA				18184L	G55100-0504		5/16*1/4	0.98	0.56
TKL18184SA	68C-5-4	68x5x4		18184		68C-0504	5/16*1/4	1.09	0.56
TKL18185SA				18185			5/16*3/8	1.04	0.68
TKL18186SA				18186			5/16*1/2	1.14	0.87
TKL18187LSA				18187L	G55100-0602		3/8*1/8	0.94	0.56
TKL18187SA	68C-6-2	68x6x2		18187		68C-0602	3/8*1/8	0.97	0.56
TKL18188LSA				18188L	G55100-0604		3/8*1/4	1.03	0.56
TKL18188SA	68C-6-4	68x6		18188		68C-0604	3/8*1/4	1.16	0.56
TKL18189LSA				18189L	G55100-0606		3/8*3/8	1.06	0.68
TKL18189SA	68C-6-6	68x6x6		18189		68C-0606	3/8*3/8	1.14	0.69
TKL18190LSA				18190L	G55100-0608		3/8*1/2	1.15	0.88
TKL18190SA	68C-6-8	68x6x8		18190		68C-0608	3/8*1/2	1.34	0.87
TKL18191SA				18191			3/8*3/4	1.29	1.06
TKL18192SA	68C-7-4			18192	G55100-0704		7/16*1/4	1.06	0.62
TKL18204SA				18204		68C-0704	7/16*3/8	1.10	0.68
TKL18193LSA				18193L	G55100-0804		1/2*1/4	1.06	0.69
TKL18193SA	68C-8-4	68x8x4		18193		68C-0804	1/2*1/4	1.22	0.68
TKL18194LSA				18194L	G55100-0806		1/2*3/8	1.16	0.68
TKL18194SA	68C-8-6	68x8		18194		68C-0806	1/2*3/8	1.14	0.69
TKL18195LSA				18195L	G55100-0808		1/2*1/2	1.19	0.87
TKL18195SA	68C-8-8	68x8x8		18195		68C-0808	1/2*1/2	1.41	0.87
TKL18196SA				18196			1/2*3/4	1.26	1.06
TKL18216SA				18216			5/8*1/4	1.21	0.87
TKL18197SA	68C-10-6			18197		68C-1006	5/8*3/8	1.12	0.87
TKL18198SA	68C-10-8	68x10		18198	G55100-1008	68C-1008	5/8*1/2	1.24	0.87
TKL18199SA	68C-10-12			18199		68C-1012	5/8*3/4	1.31	1.06
TKL18200SA	68C-12-8	68x12		18200	G55100-1208	68C-1208	3/4*1/2	1.29	1
TKL18201SA	68C-12-12	68x12x12		18201	G55100-1212	68C-1212	3/4*3/4	1.44	1.06
TKL18202SA				18202			7/8*1/2	1.18	1.12
TKL18203SA	68C-14-12			18203		68C-1412	7/8*3/4	1.22	1.12
TKL18205SA				18205			7/8*1	1.67	1.37
TKL18206SA				18206			1*3/4	1.95	1.37
TKL18207SA				18207			1*1	2	1.38
