  • tkl21414-air-brake-hose

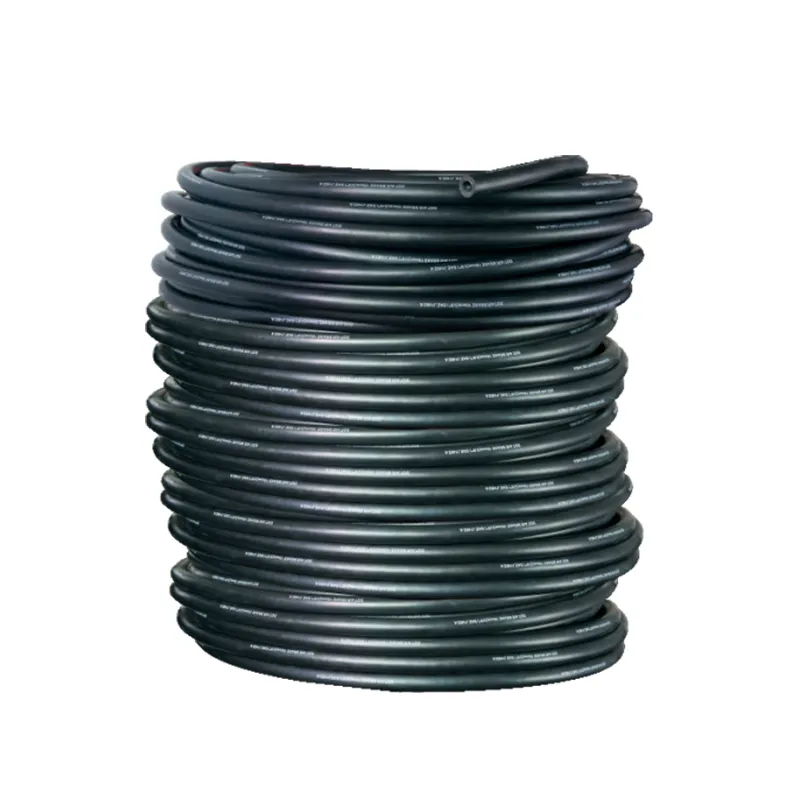

Air Brake Hose

  • TKL NO.

    TKL21414, TKL21415, TKL21416, TKL21417, TKL21418, TKL21419, TKL21420

  • REF NO.

    1921-4-T, 1921-6, 1921/6/1, 1921-6-T, 1921-8, 1921/8/1, 1921-8-T

  • NOTE:

    SAE J1402

Inquire > Add to Cart >

Outstanding Features of Air Brake Hose

1. SAE J1402-Type A

2. Minimum burst pressure of 900 psi

3. Designed for operating pressure up to 225 psi

4. Operating temperature of -40°F to +200°F(-40℃ to +93℃)

5. Designed to provide flexible air-connection from frame to axle or between tractor and trailer


Specification of Air Brake Hose

REF.TKLPart No.REF.TECTRANHose
I.D.		Hose
O.D.		Minimum Bend Radius(psi)**Length
TKL214141921-4-T214141/4"3/8"2 1/2"50' Carton
TKL214151921-6214153/8"3/4"3 1/2"250' Spool
TKL214161921-6-1214163/8"3/4"3 1/2"100' Carton
TKL214171921-6-T214173/8"3/4"3 1/2"50' Carton
TKL214181921-8214181/2"7/8"4"250' Spool
TKL214191921-8-1214191/2"7/8"4"100' Carton
TKL214201921-8-T214201/2"7/8"4"50' Carton
